Description
**CALL OR EMAIL FOR YOUR PRICE. 417-831-7669 , greg@kencofe.com

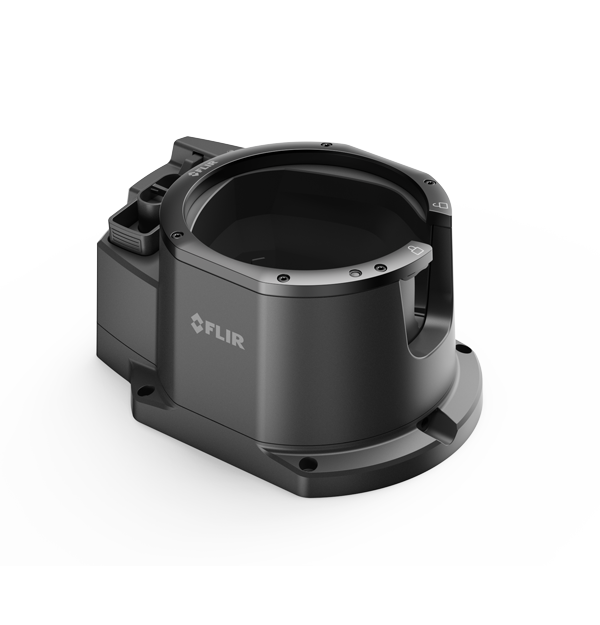

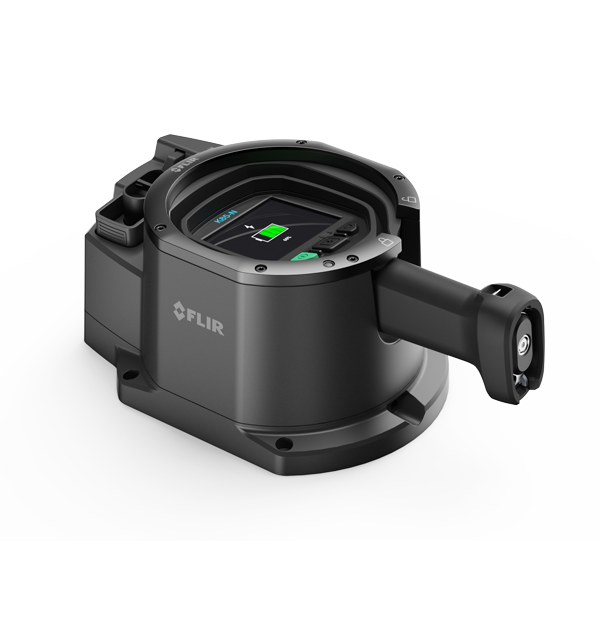

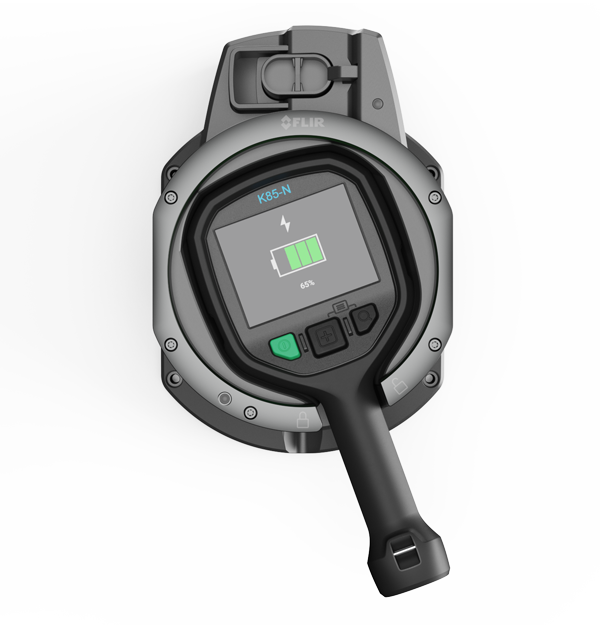

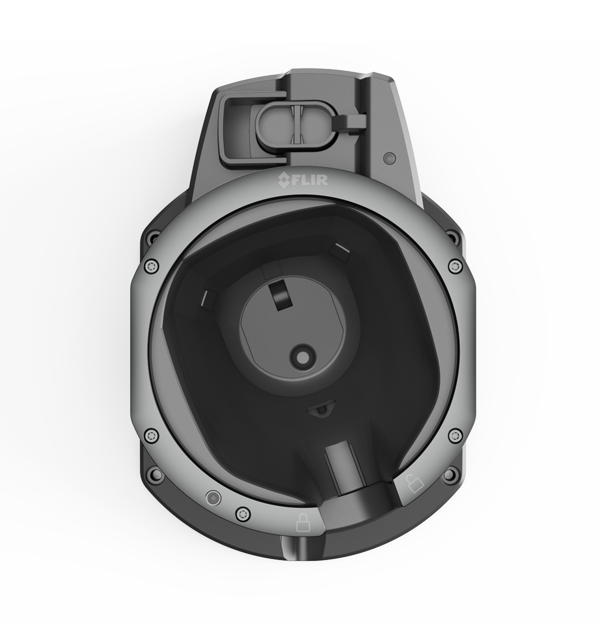

In-truck charger and charging solution for next generation Kxx-Series (K75 & K85).
Compatible with previous generation Kxx-Series (K33-K65).
Charging time: < 4 hours.
Charging temperature: 0°C to +45°C (+32°F to +113°F)
External power,
connector type: Terminal block or 12V DC jack.
DC operation: 12/ 24 V DCnominal (11.1 - 28.0 V DC).
Power: Max 36 Watts or 3000 mA at 12 VDC (5 amps fuse).
Storage temperature: range
–40°C to +85°C (–40°F to +185°F).
Relative humidity: Operational for non-condensing humidity between
5% and 95%.
EMC: EN 50498 Aftermarket electronic equipment in
vehicles.
FCC47CFR part 15 class B.
NFPA requirements.
ISO 7637-2 Road vehicles - Electrical disturbances
from conduction and coupling Part 2: Electrical
transientconduction along supply lines only
ECER 10, UN ECE Regulation 10.
Safety: IEC/EN 62368-1>
Encapsulation: IP 20.
Bump: Operational after exposed to: 5 pulses/ in each axis/
direction (30 total) of 30g 11ms half sine profile.
Vibration: Operational after exposed to: 4, 3g rms random.
Weight:
1,5 kg (3,2 lbs).
Size: (L × W × H) 278 x 193 x 146 mm (11 x 7,6 x 5,6 in).
Material: PC-ABS + Zinc.
Color: Black.
Shipping information: "• Charger
• Documentation
• Card board box"
Packaging, weight: 0,5 kg (1,1 lbs)
Packaging, size: 320 x 220 x 175 mm (12,6 x 8,7 x 6,9 in)
