Description
*Note: This product has a 6 week lead time.
FREE GROUND SHIPPING TO THE CONTIGUOUS 48 STATES.

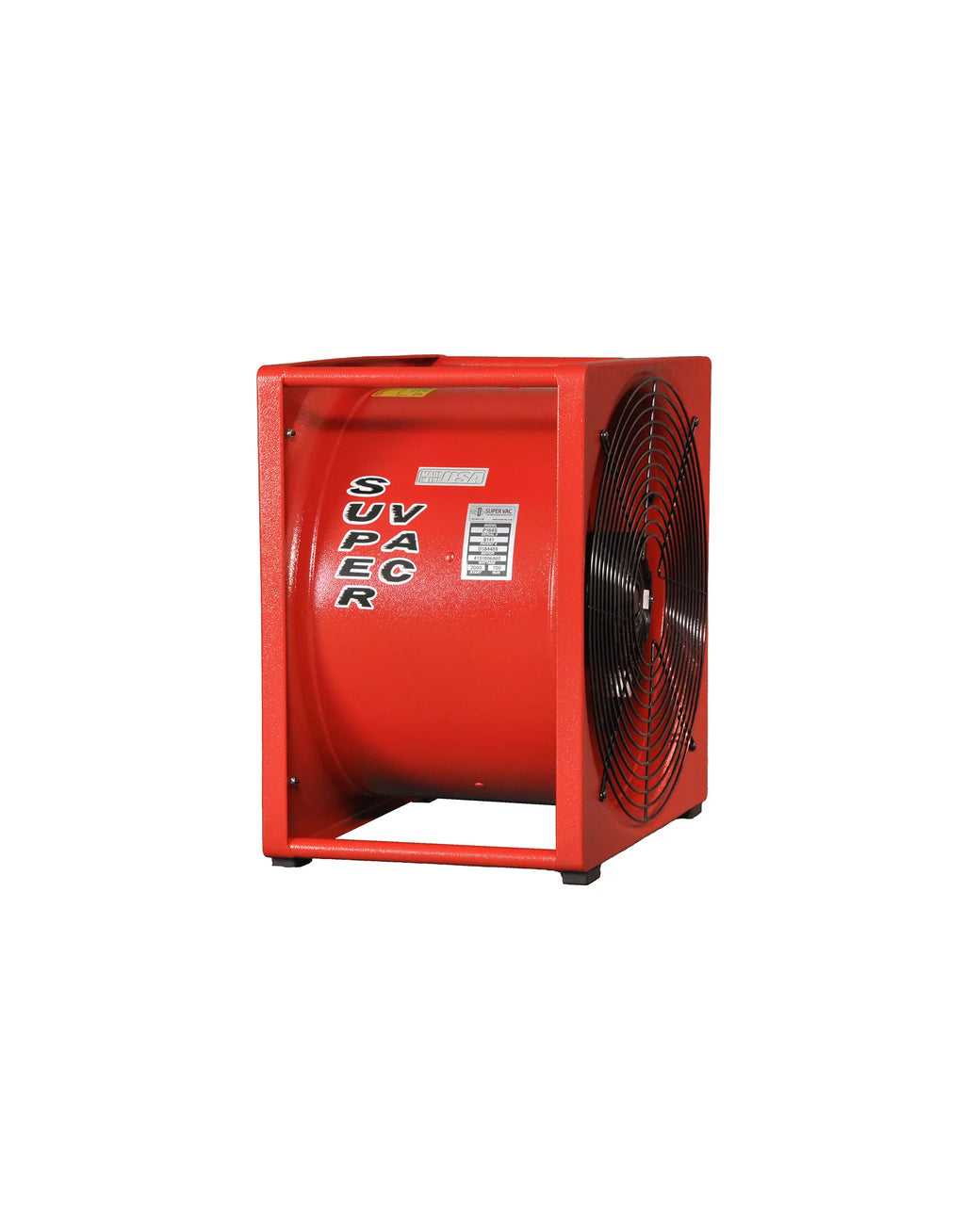

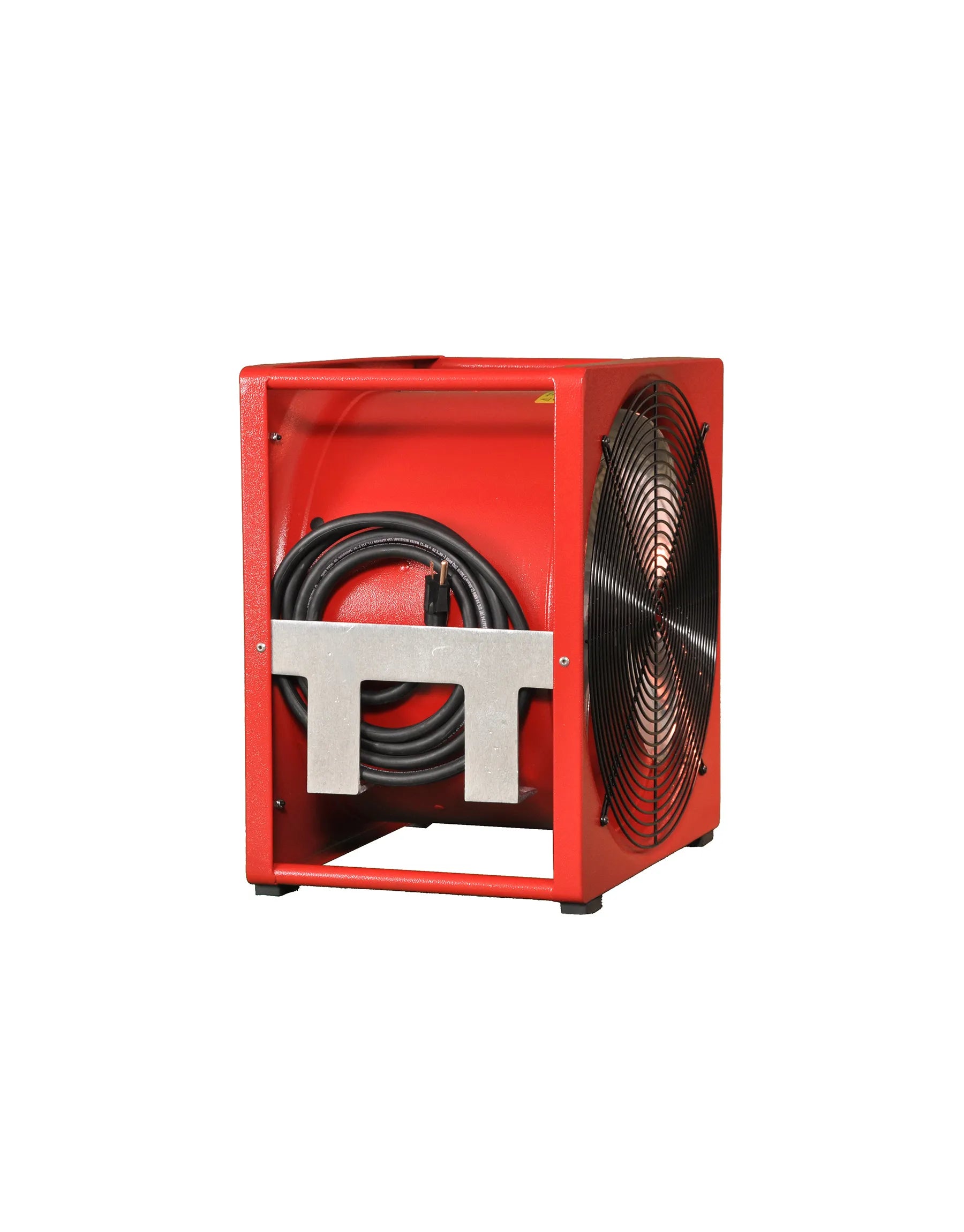

This 12" electric, single-speed Super Vac Smoke Ejector is designed for high-powered air movement in a compact size, perfect for
departments that need to ventilate smaller buildings or conserve apparatus space. This fan pulls smoke from structures using negative
pressure but can be ipped around for positive pressure tactics. Smoke ejectors are most effective when working with natural airow
and not against Mother Nature.
Features:
1. Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke
and fumes away from the building; aluminum holds up better than plastic in high heat.
2. Precision-Balanced Blade: Maximizes output.
3. Heavy-Duty Rubber Feet: Adds friction to keep fan in place.
4. 4 Carry Handles: Makes transportation easy with one or two people.
5. Front and Rear Guards: Prevents accidental contact with key components.
The smoke ejector shall be designed with the following:
Motor: Bluffton Totally Enclosed Air Over (TEAO) Electric.
Horsepower: 1/2 HP.
Power: 115/230V, 50/60Hz.
Speed: 3,450 rpm.
Output: 3,700 cfm.
Dimensions: 15.5" high x 15" wide x 13" deep
(395 mm x 380 mm x 330 mm).
Weight: 40 lbs.
The smoke ejector shall have a minimum ve (5) year warranty. The motor shall be
warranted by the motor manufacturer for a minimum of two (2) years.
